HVAC Duct Making Machines

Super U Shape Square Auto Air Duct Line

Name: Super U Shape Square Auto Air Duct Line
Brand :Rbqlty
Category :HVAC DUCT MACHINE
Price: CONSULT 5.Japan OMRON Special encoder

Product Description Components Technical Parameters

Product Description


Auto duct line V(u type)



Machine pictures for reference





Performance Features:

· Honest strengthens the basis in the pursuit of customer satisfaction and constant innovation

helps customers to achieve the goals.

· During feeding mechanism with pneumatic servo manipulator helps to ensure stability and

speed of the machine, and the accuracy of its locating system.

· It only takes 20-25 seconds to make one L-shaped workpiece and the efficiency will double

comparing with the linear type.

· Without moving back and forth the fixed locking machine is able to improve the efficiency.

· All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.

· Under the material-saving mode of CNC system, waste is less than 20 mm per roll.

· With production memory functions, the production orders can be tracked and checked.



Function:

It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of

1000-2500 square meters. Only with inputting dimensions in duct, production line can

automatically complete uncoiling, leveling,beading, punching, shearing, locking, forming TDF /

angle steel / C-shaped flange and folding.

Basic Configuration:

· Two electric coil cradles, 4 material trays (5-7 t each roll)

· One rack

· One host (line 2 host)

· Two stainless steel roller convey platforms

· One fixed joint locking machine

· One duplex TDF flange forming machine

· One duplex angle steel flange forming machine

· One servo feeding platform

· One hydraulic folding machine

· One set of computer controlling system

Return to List

Components

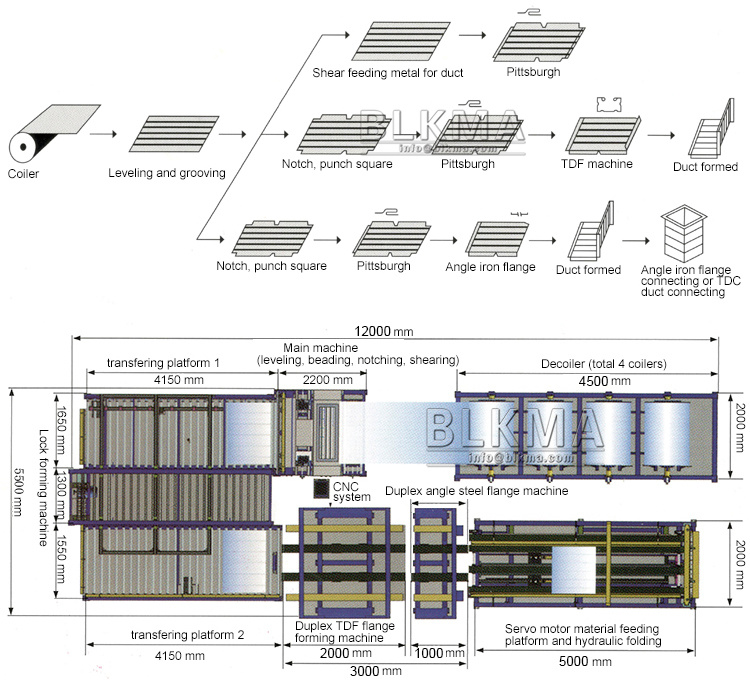

Working processing:

Basic equipment:

1.Electric feeding rack 1 set

2.Leveling ,beading equipment one group

3.Hydraulic angle shearing machine 4 sets including die

4.Hydraulic plate shearing device, hydraulic bending device



Main components:

1.France Schneider Electric

2.OMRON encoder

3.Control system台湾Mitsubishi (三菱)

4.Main motor:Siemens or Chinese famous brand

Technical Parameters


Main technical parameters



Model No.

Max Coil Width

Thickness Range

Speed

Power

dimensions

Shearing Tolerance

Diagonal Tolerance

Weight

U-1.2x1300

1300mm

0.4-1.2mm

0-18m/min

36kw

14*5*1.5m

±0.5mm

±0.5mm

12ton

U-1.2x1600

1600mm

0.4-1.2mm

0-18m/min

36KW

14*5*1.5m

±0.5mm

±0.5mm

12.5ton
