CT8 3+1 Axis Hydraulic Press Brake Machine

Name : CT8 3+1 Axis Hydraulic Press Brake Machine
Brand :Rbqlty
Category :Hydraulic PRESS BRAKE MACHINE
Model Type :WC67K
Price: CONSULT

Product Description Components Technical Parameters

Product Description


3+1 Axis Hydraulic Press Brake Machine



Back Gauge Safety Fence



Standard
1.6.4" color LCD display. (TFT)
2.266 MHz processor, memory capacity 64MB.
3.Tooling database: punches for 30 sets, dies for 30 sets.
4.Standard Windows functions. User specific applications support.
5.USB keyboard, mouse and flash memory drive.
6.Precision ball screw lead, linear slide way and AC servo motor for X axis.
7.Bearing-type guideway system.
8.German HOERBIGER hydraulic circuit. (for 4 axes and above)
9.Equipped with European optical scales. (for 4 axes and above)
Main Functions
1.Alphanumeric product naming.
2.Millimetres/Inches, KN/Ton and languages selection.
3.Number of steps up to 25. Step repeat up to 99 (maximum).
4.Programmable tooling, products and material properties.
5.Computed functions include tooling safety zones, press force, crowning adjustment, speed-change point and etc. (Differ from various axes.)
6.Store tooling & workpiece data via USB interface.
7.There are two modes: angle-input mode, depthinput mode.
8.Diagnostic program.
9.Both sides angles can be adjusted independently. (for 4 axes and above)

CybTouch 8 PS



Easy Operating
• Large, vivid and high-contrast fully touchscreen.
• Simple pages, clear display, large keys.
• Intuitive user-friendly interface.
• Complete programming for efficient mass-production
with multiple bends.
• Easy single bends thanks to the EasyBend page.
• On-line help and interactive warning pop-ups.
• Comfortable wireless data backup and software
updating using PC or Notebook.
• USB memory stick port for data transfer/backup.
• Large variety of languages available.

Better Bending
• Various automatic calculations of bend functions.
• Bending sequences and programs can be memorized.
• Angle, pressure and crowning management.
• Easy manual movement.



Return to List

Components


Machine parts

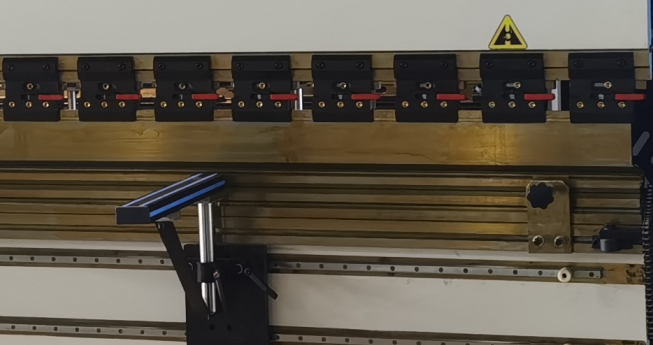

Fast mold clamp

NC system

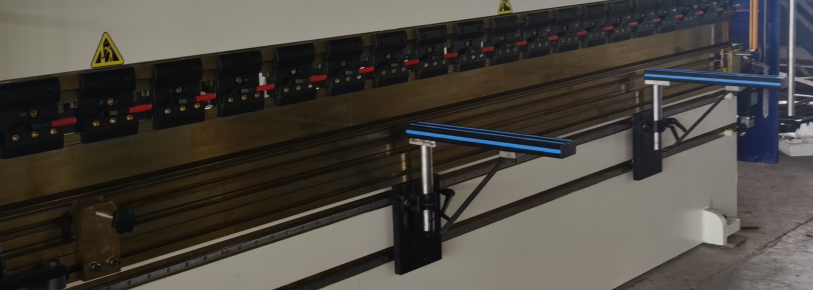

Front support + guide rail

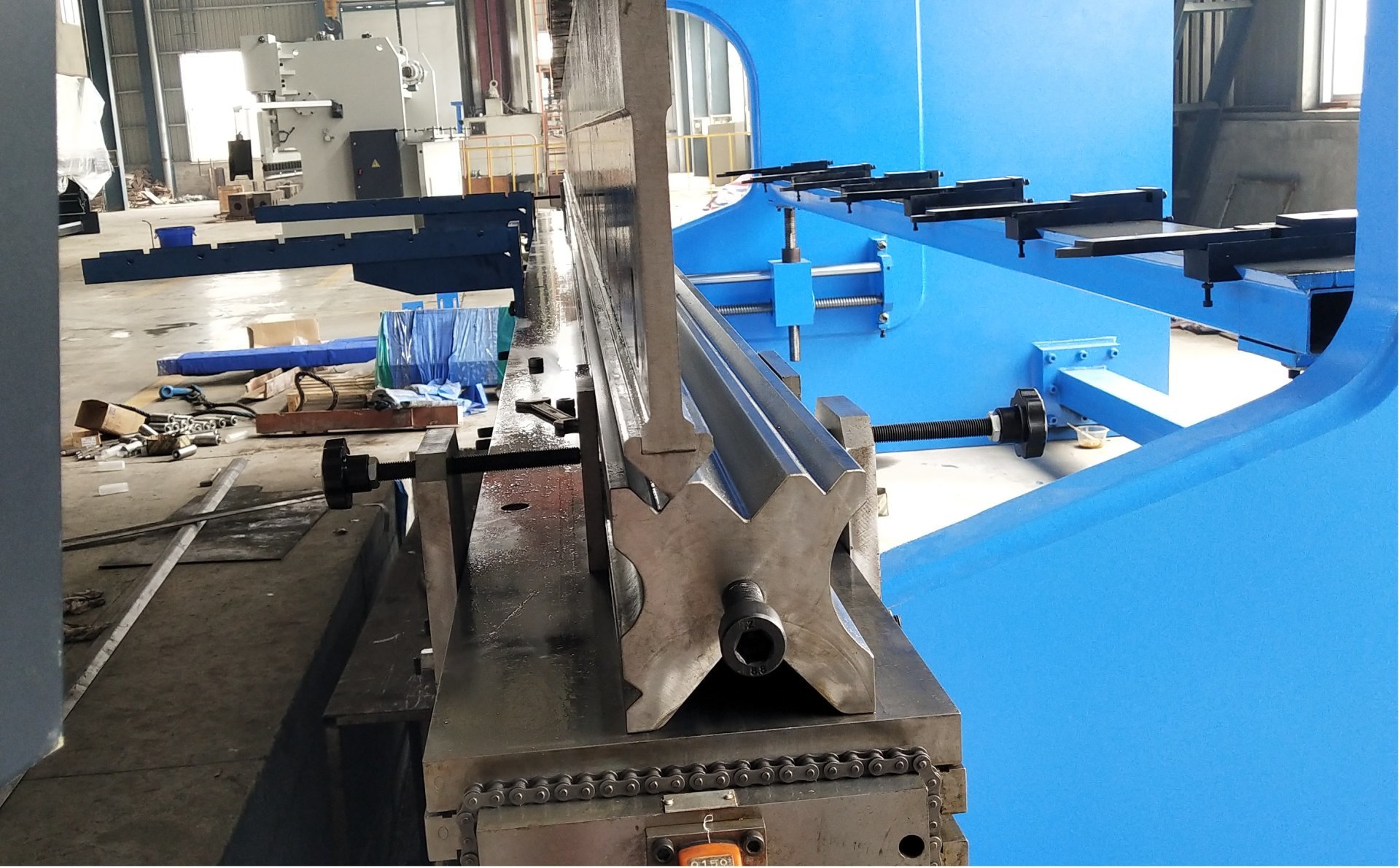

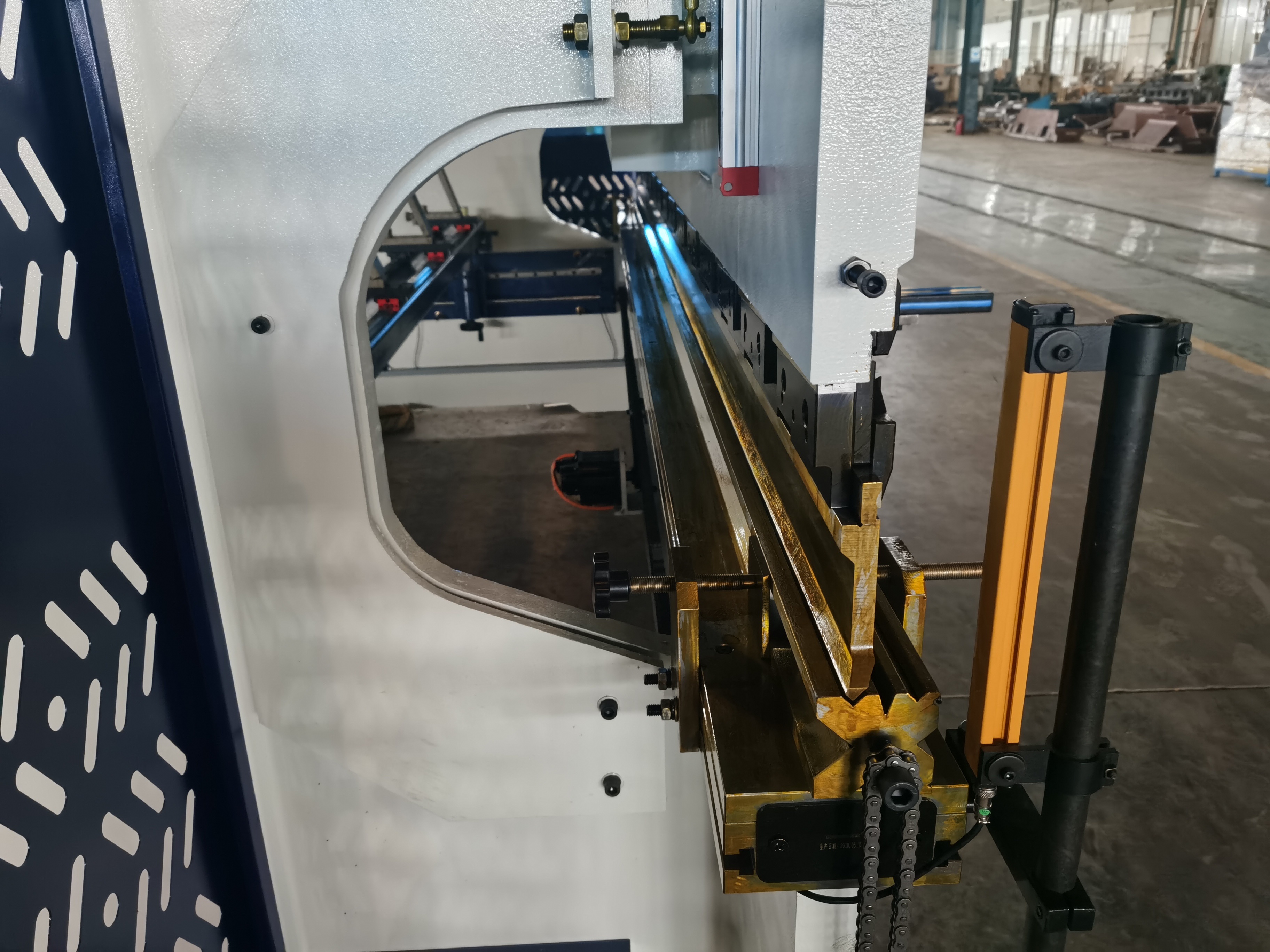

Multi-V mold

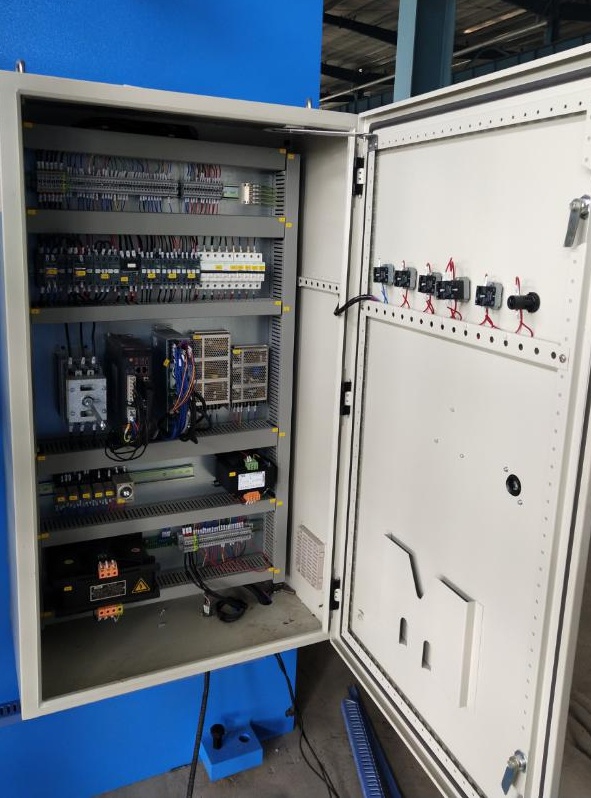

Electronic system

Hydraulic Valve

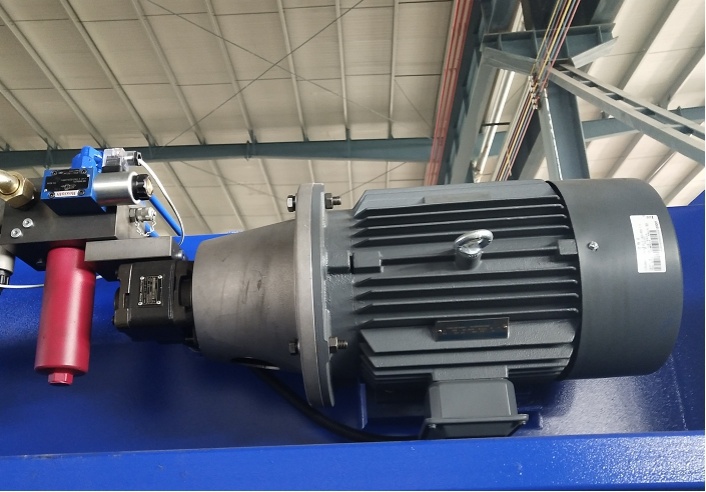

Main motor

Servo Drive

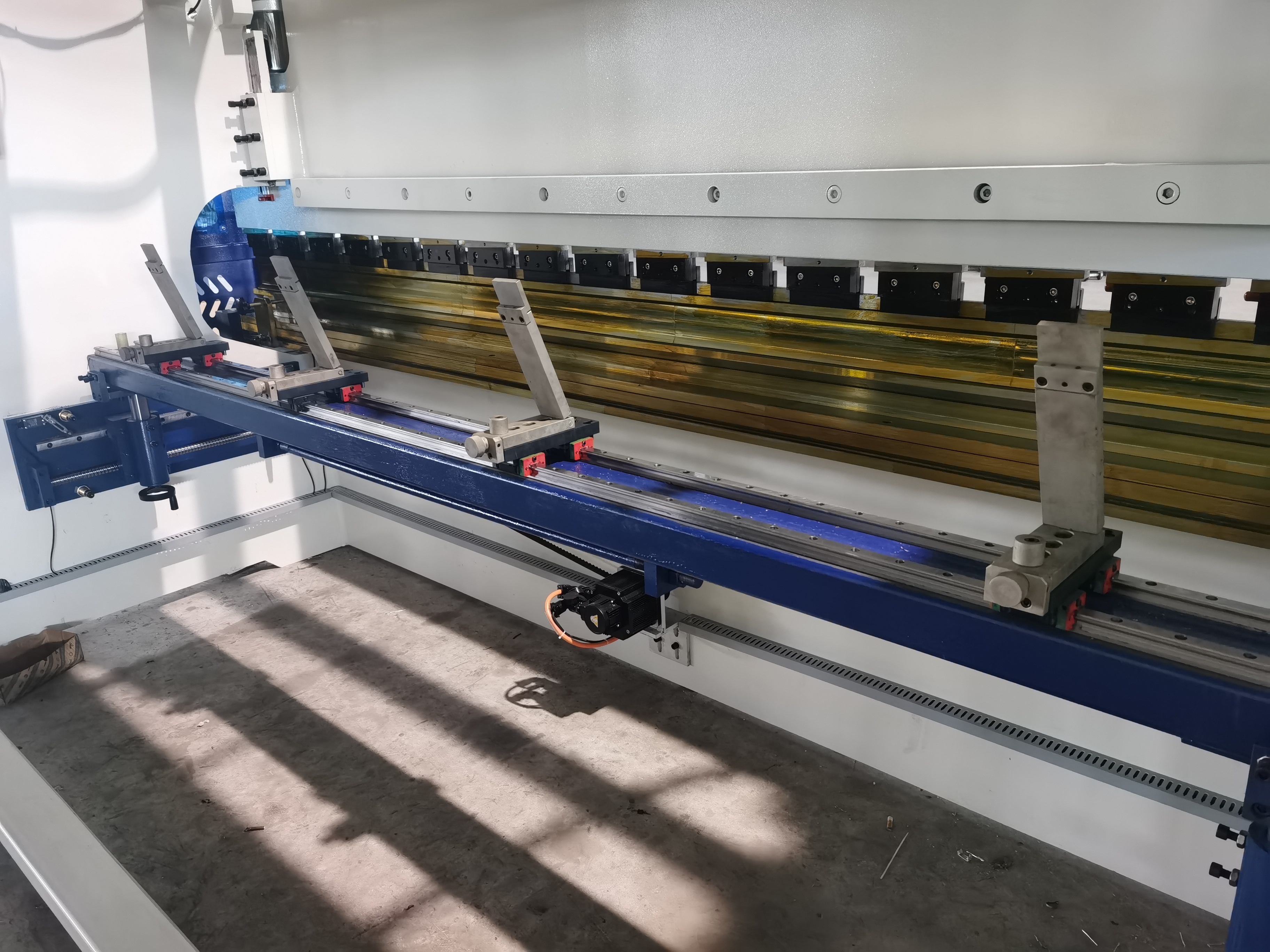

Back gauge

Double guide rail for back gauge beam

Z-axis operation finger

Ball screw + linear guide

V-axis electrical compensation

Grating ruler

Foot switch

Oil pump



Machine optional parts

CNC control system

Up and down stop finger

Laser protection

Air cooled

Technical Parameters


Machine Axis
