Round Duct Rolling Machine
Name :Round duct rolling machine Brand :Rbqlty Item NO :1524885765 Category :HVAC DUCT MACHINE Model Type :RB Price :CONSULT
Inquire Now
Product Description
Three roller bending machine

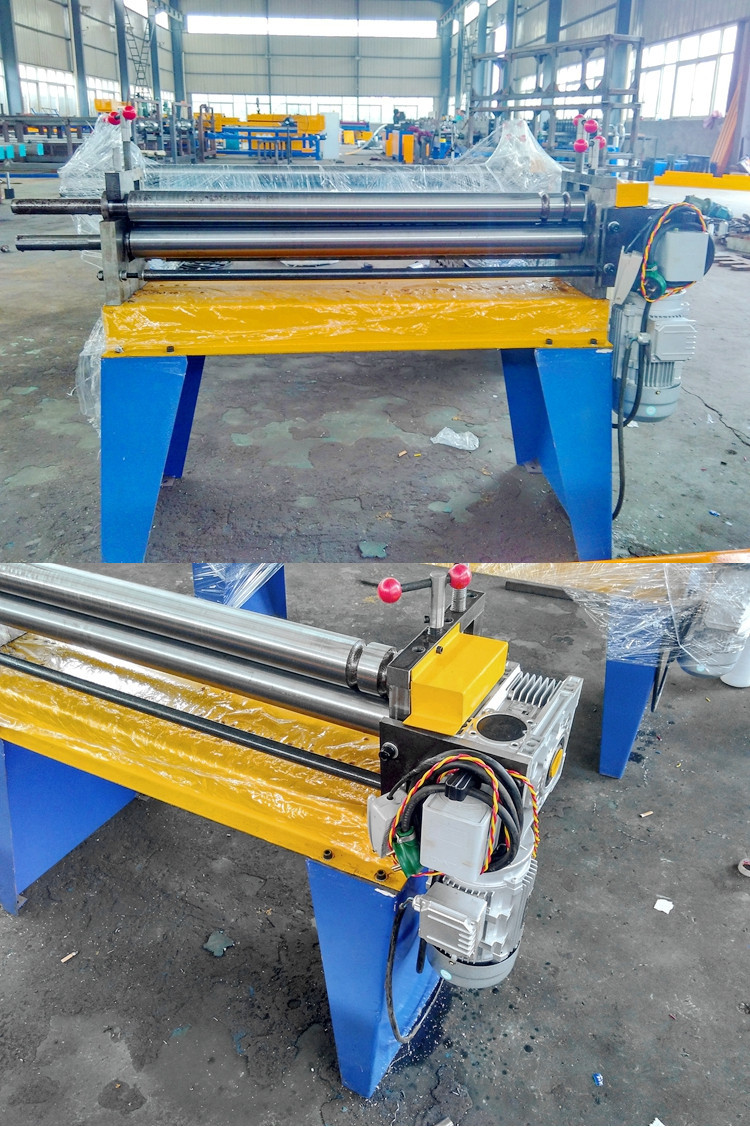

Machine pictures for reference
Round duct rolling machine
it can even round small round pipe with min diameter of 100 mm.
Combined with manual worm gear and eccentric wheel device the machine can quickly move side rollers up and down to improve efficiency.
FAQ
Workpiece Display
Content update in progress,...
Components

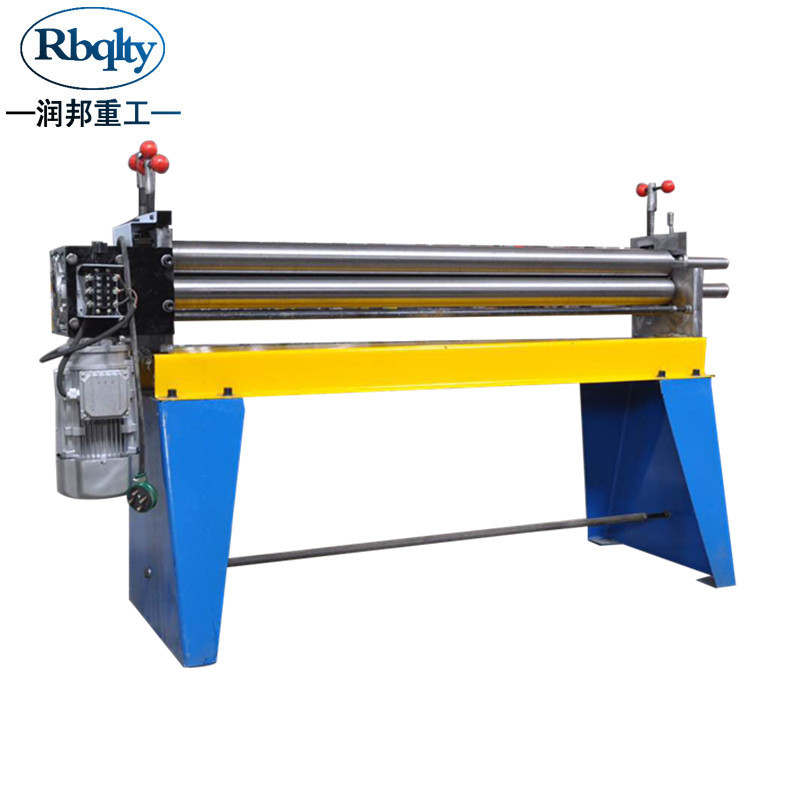

Electric rolling machine
Manual rolling machine
Technical Parameters
Main technical parameters
Manual rolling machine
| Model | W11-2*1000 | W11-1.5*1300 | W11-1.2*1500 | |
| Plate thickness | mm | 0.4-2 | 0.4-1.5 | 0.4-1.2 |
| Plate Width | mm | 1000 | 1300 | 1500 |
| Min. Diameter | mm | 100 | 100 | 100 |
| Weight | kg | 220 kg | 250 kg | 280 kg |
| Dimension | mm | 1500*500*1000 | 1800*500*1000 | 2030*500*1000 |
Electric rolling machine
| Model | W11G-1.2×1500 | W11G-1.5×1300 | W11G-2×1000 | |
| Max. thickness | mm | 1.2 | 1.5 | 2 |
| Max. width | mm | 1500 | 1300 | 1000 |
| Min. diameter | mm | 120 | 120 | 120 |
| Roller diameter | mm | 72 | 72 | 72 |
| Motor Power | kw | 1.5 | 1.5 | 1.5 |
| Weight | kg | 280 | 250 | 230 |
| Dimension | mm | 2050×550×1200 | 1820×550×1200 | 1550×550×1200 |
