HVAC Duct Making Machines
Round Duct Flange Rolling Machine
Name :Round duct flange rolling machine Brand :Rbqlty Item NO :1524735768 Category :HVAC DUCT MACHINE Model Type :RB Price :CONSULT
Inquire Now
Product Description
Electric angle rolling machine
Machine pictures for reference
Product description:
1, Electric angle iron crimping machine can be changed according to different needs. You can roll angle iron,
flat iron, square steel pipe, steel, etc. Three roll gap can be adjusted at work, saving material.
2, Angle iron round rolling machine is the carbon steel, stainless steel, nonferrous metal profile (steel, strip
steel, channel steel, pipe, etc) rolled into the diameter 320- 6000 mm circular ring and the flange of a high
quality, high benefit rolls round device.
3,Instead of the original steel plate material, docking, correction, lathe processing complex process and save
the oxygen, acetylene, labor, raw materials and other is advanced machine tools manufacturing flange.
The features:
1, small size with low energy consumption.
2, high efficiency and no noise.
3, convenient installation and use
4, simple operation
5, strong carrying capacity
6, long service life
7, fast rolling speed
8, reliable and steady product quality
Application:
The products are widely used in wind machine, bridge template, chemical equipment, cable trays, mine explosion-proof switch, centrifuges and other machinery and equipment industry application. Can also be used in external processing, lucrative.
FAQ
Workpiece Display
Content update in progress,...
Components

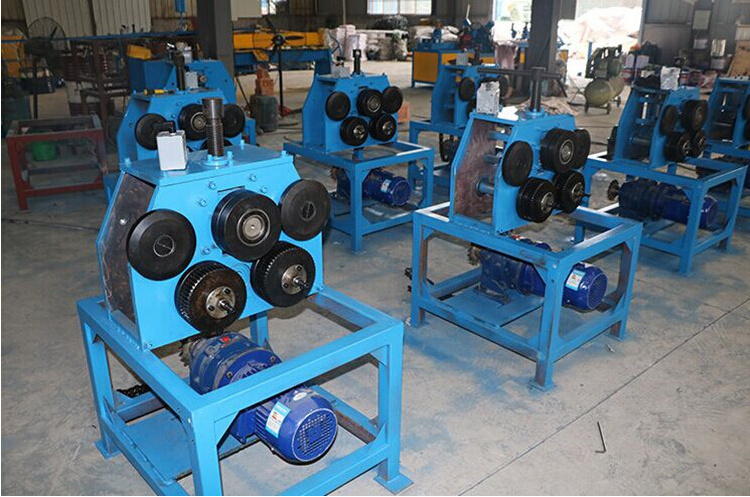

Machine photo:
Ending Product:
Technical Parameters
Main technical parameters
| Item / Model | JY-40 | JY-50 | |
| Yield limit | ≤245 Mpa | ≤245 Mpa | |
| Minimum beading Dia | 200-400 mm | 300-400 mm | |
| Angle steel leg out | <40*4 | <40*4 | |
| Overall size | L. mm | 700 mm | 800 mm |
| Model size | W. mm | 500 mm | 550 mm |
| H. mm | 950 mm | 1100 mm | |
| Weight kg | 370 kg | 400 kg | |
| Main motor kw | 1.5 kw | 2.2 kw | |
