HVAC Duct Making Machines

Round Duct Angle Steel Flange Auto Line

Name: Round Duct Angle Steel Flange Auto Line
Brand :Rbqlty
Category :HVAC DUCT MACHINE
Price: CONSULT

Product Description Components Technical Parameters

Product Description


Round Duct Angle Steel Flange Auto Line





Round Duct Angle Steel Flange Auto Line description

Fully automatic CNC Angle method in production line, also known as CNC Angle iron production line, mainly complete duct angle steel flange angle(30-50) of large hole punching and shearing functions, automatic feeding, pick, cut off the automatic CNC control requirement, it economizes manpower, and improve efficiency, has quick speed, precise size, high degree of automation, etc.

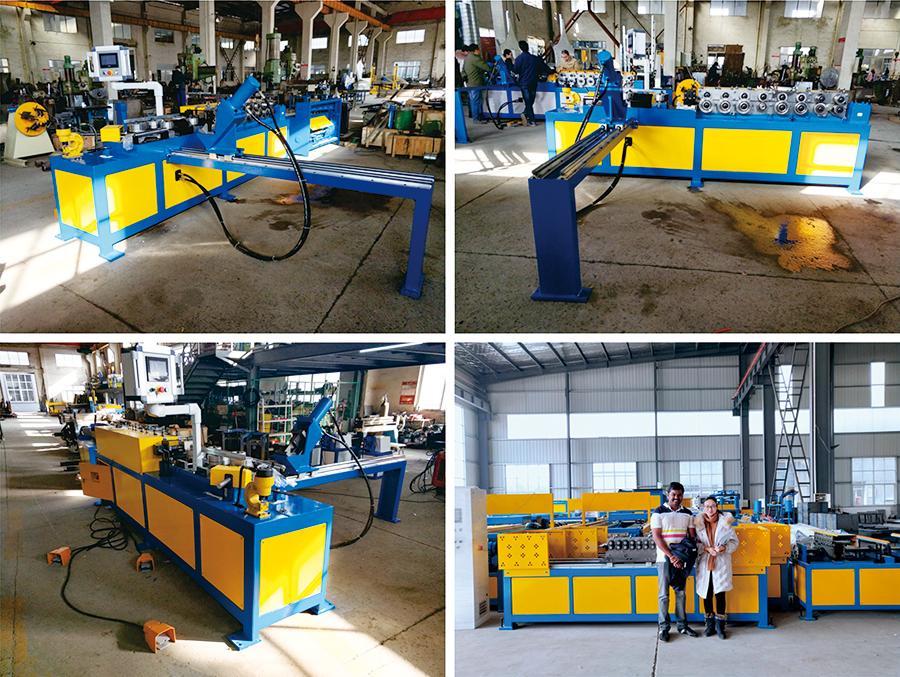

Machine pictures for reference

















































Performance Features:

1.It's controlled by servo motor and its feeding dimensions are accurate.

2.It only requires to input the size of work piece, how many holes to punch when programming,which is very easy to operate

3.The new design mold can complete the angle steel switching rapidly, and the punch is durable.





GI plate processing diameter capacity

3mm thick-min 500mm diameter

2mm thick- min 300mm diameter

1.5mm hick-min 200mm diameter

Flange edge size 20mm~35mm (both side)



Function:

Fully automatic angle steel flange production line, or CNC angle steel flange production line, is mainly

for punching and cutting duct angle steel flange.

The machine are designed to feed, punch, cut automatically order to save labor and improve efficiency.

It’s very fast, accurate and highly automatic.

Return to List

Components


Main components:



Screen Kunlun Tongtai

Transducer Taiwan Dongyuan

PLC Panasonic

AC contactor and relay Schneider

Electricity source Taiwan Mingde

Overflow Valve Beijing Huade













Technical Parameters


Main technical parameters

Model

No.

STJG-30/50

Working Range

mm

30/40/50 angle steel

Power

kw

8

Weight

kg

900

Demension

mm

3000×900×1300

Processing angle range



3 - No. 5 angle

Commonly punching size

mm

big hole 9.5X13

 small hole 4.2/5.2

Can be installed at the same time the number of punch (a)



2

Common angle length:

mm



6000



Precision

mm

less than 0.5

Angle feeding speed

m/min

15- 20m/min
