HVAC Automatic duct production line III

Name :HVAC Automatic duct production line 3
Brand :Rbqlty
Item NO :1523864748
Category :HVAC DUCT MACHINE
Model Type :SDJL-III
Price :CONSULT

Product Description Components Technical Parameters

Product Description


Auto duct line III

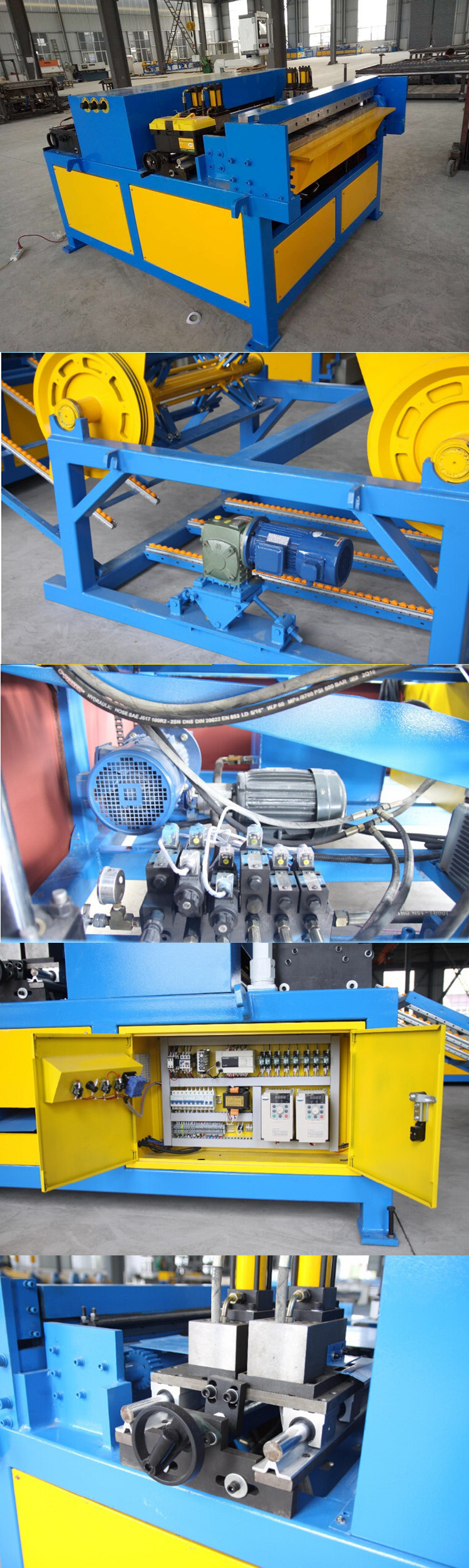

Machine pictures for reference

Auto duct line III description

The air duct production line 3 is composed of uncoiler, flat curler, "V" and "square" slotting machine, cutting machine and bending machine.
Standard configuration makes TDF flange duct and square slotting device also be used to produce TDC flange. The bending part can be matched with the right angle by the locking machine, and can also be bent into the "square" or "L" type. It greatly improves the utilization rate of sheet metal and reduces the labor intensity.


Working processing:



rbqlty.com

Return to List

Components


Basic equipment:

1.Electric feeding rack 1 set

2.Leveling ,beading equipment one group

3.Hydraulic angle shearing machine 4 sets including die

4.Hydraulic plate shearing device, hydraulic bending device

5.Mitsubishi CNC control, software(in English)



Main Configuration:

1.Cylinder imported from Germany Festo

2.Beijing Huade or hydraulic system from Taiwan

3.Japan Omron encoder

4.Taiwan Hiwin linear guide

5.Taiwan Delta CNC system

6.Japan Mitsubishi CNC system+Schneider electrical system

rbqlty.com

Technical Parameters


Main technical parameters

Model

Plate thickness range(mm)

Plate width(mm)

Max working speed    (m/min)

Max coiler weight    (Kg)

Weight   (Kg)

Dimensions(mm)

RB-3-1300

0.5-1.2

1300

16

6000*2

3500

5500*1950*1750

RB-3-1500

0.5-1.2

1500

16

6000*2

3600

5500*2160*1750
