Automatic HVAC Auto Duct Production Line 5
Name: Fully Automatic HVAC Auto Duct Production Line 5 Brand :Rbqlty Category :HVAC DUCT MACHINE Price: CONSULT
Product Description
Auto duct line V(u type)

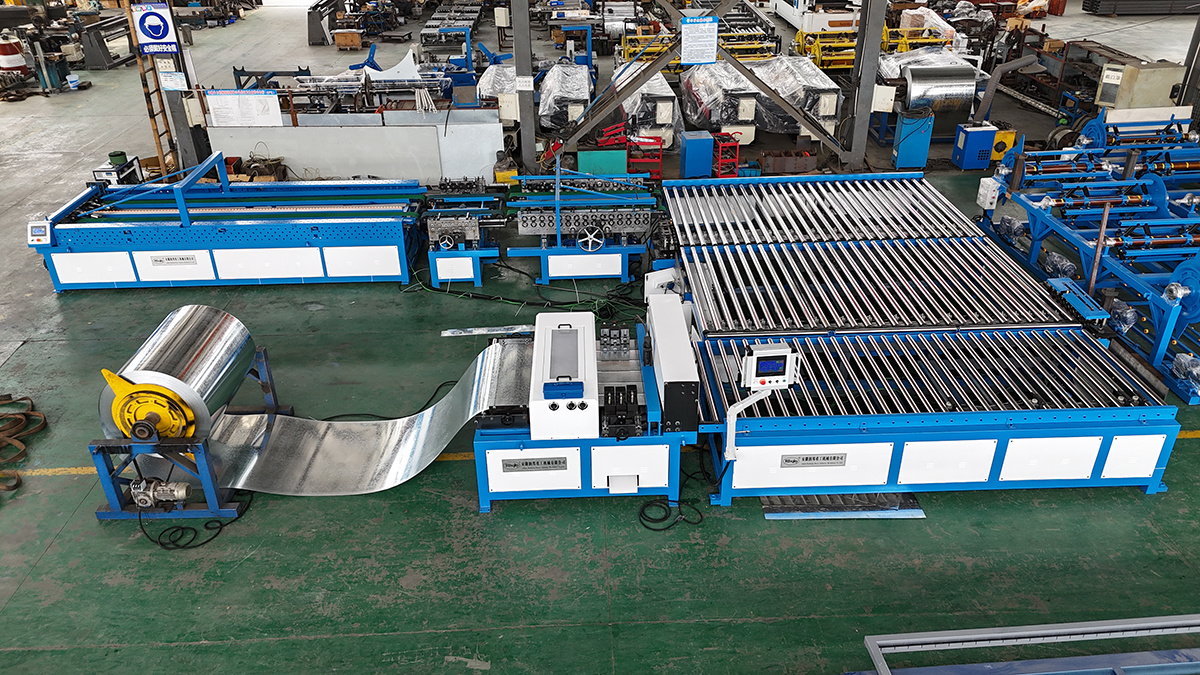

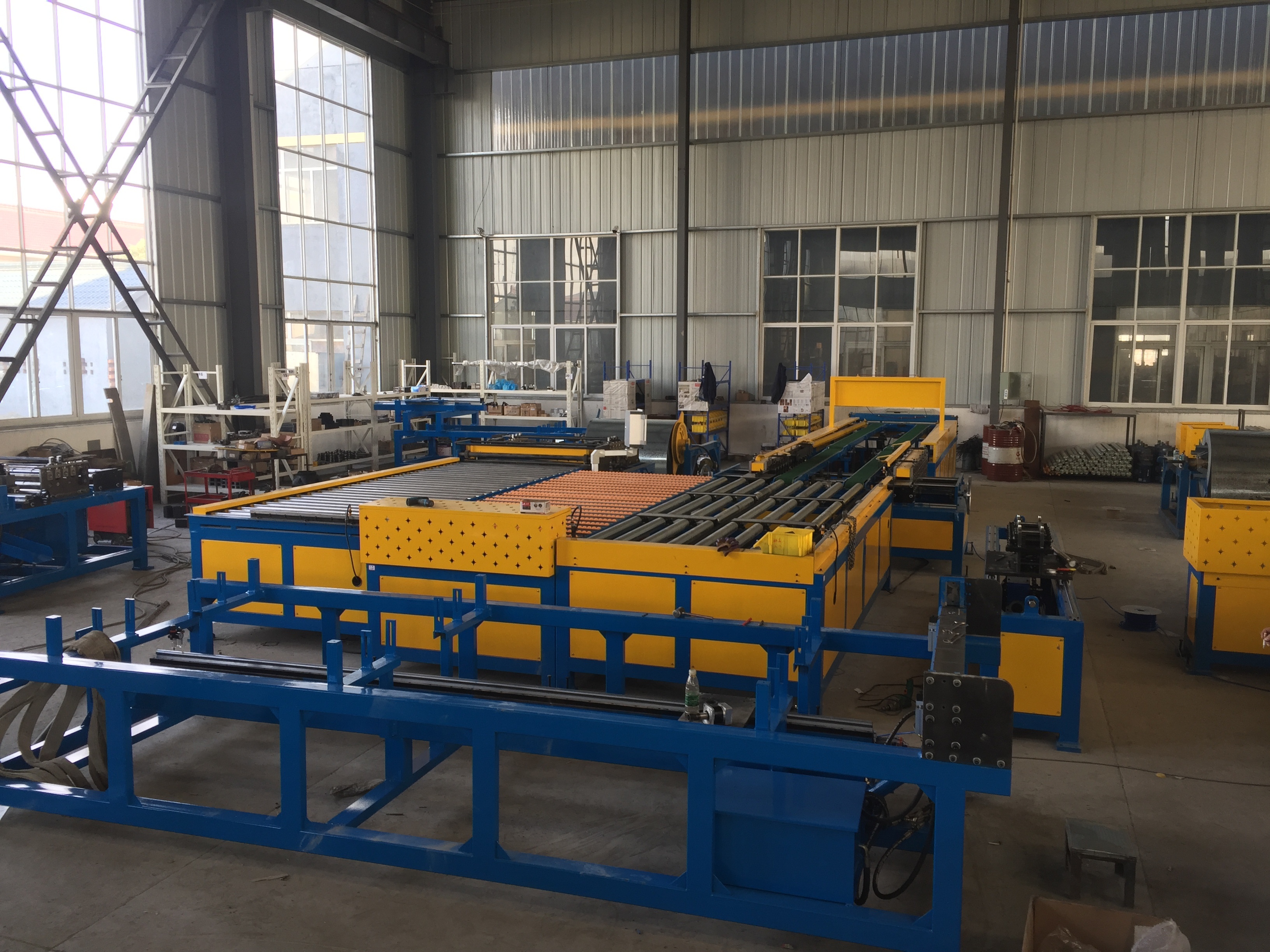

Machine pictures for reference
Performance Features:
· Honest strengthens the basis in the pursuit of customer satisfaction and constant innovation
helps customers to achieve the goals.
· During feeding mechanism with pneumatic servo manipulator helps to ensure stability and
speed of the machine, and the accuracy of its locating system.
· It only takes 20-25 seconds to make one L-shaped workpiece and the efficiency will double
comparing with the linear type.
· Without moving back and forth the fixed locking machine is able to improve the efficiency.
· All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
· Under the material-saving mode of CNC system, waste is less than 20 mm per roll.
· With production memory functions, the production orders can be tracked and checked.
Function:
It's mainly for TDF / angle steel / C-shaped flange forming with daily processing capability of
1000-2500 square meters. Only with inputting dimensions in duct, production line can
automatically complete uncoiling, leveling,beading, punching, shearing, locking, forming TDF /
angle steel / C-shaped flange and folding.
Basic Configuration:
· Two electric coil cradles, 4 material trays (5-7 t each roll)
· One rack
· One host (line 2 host)
· Two stainless steel roller convey platforms
· One fixed joint locking machine
· One duplex TDF flange forming machine
· One duplex angle steel flange forming machine
· One servo feeding platform
· One hydraulic folding machine
· One set of computer controlling system
Components

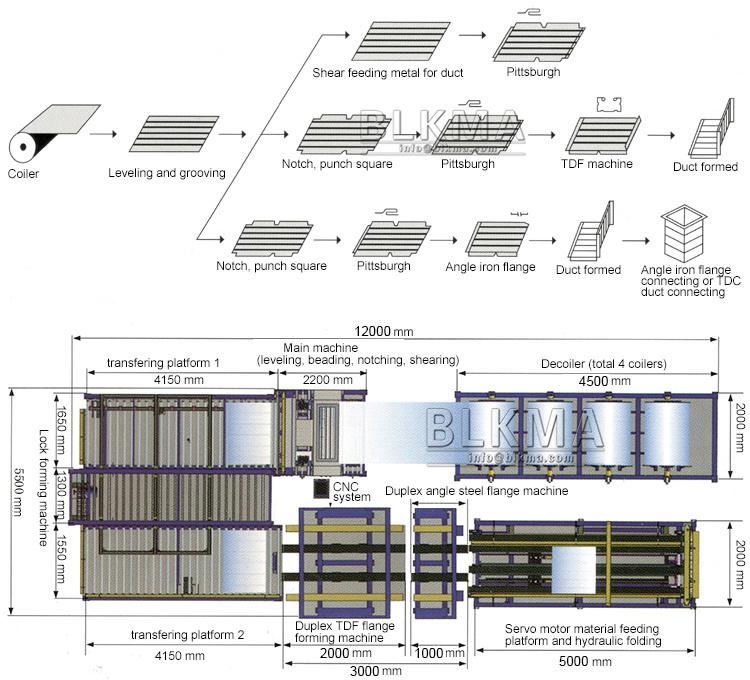

Working processing:
Basic equipment:
1.Electric feeding rack 1 set
2.Leveling ,beading equipment one group
3.Hydraulic angle shearing machine 4 sets including die
4.Hydraulic plate shearing device, hydraulic bending device
Main components:
1.France Schneider Electric
2.OMRON encoder
3.Control system: 台湾Mitsubishi （三菱）
4.Main motor:Siemens or Chinese famous brand
Technical Parameters
Main technical parameters
Model No. | Max Coil Width | Thickness Range | Speed | Power | dimensions | Shearing Tolerance | Diagonal Tolerance | Weight |
U-1.2x1300 | 1300mm | 0.4-1.2mm | 0-18m/min | 36kw | 14*5*1.5m | ±0.5mm | ±0.5mm | 12ton |
U-1.2x1600 | 1600mm | 0.4-1.2mm | 0-18m/min | 36KW | 14*5*1.5m | ±0.5mm | ±0.5mm | 12.5ton |
