JH21s Pneumatic Punch Press with Feeding Table
JH21 Series High performance open back stationary pneumatic press
1, This series of press frame is welded by steel plates, small deformation, good rigidity.
2, This series of machines adopts pneumatic friction clutch-brake combination, long service life, low noise, stable
transmission. The six surfaces of the guide rail, precision is high, can prolong the life of die, die height adjustment
is convenient and reliable, with emergency stop, inching, single and continuous operation specification.
3, Optional: PLC electrical control system, air cushion, photoelectric safety protection device.
Machine with cnc servo feeder (flat plate)

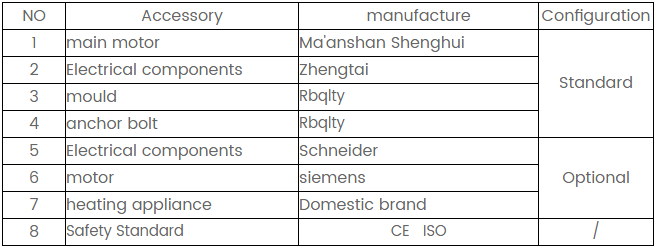

Main components photos show:
