HVAC Duct Corner Punch Press

Name :HVAC duct corner punch press</br> Brand :Rbqlty</br> Item NO :1525662442</br> Category :HVAC DUCT MACHINE</br> Model Type :RB</br> Price :CONSULT

关键词:

key word:

Laser cutting machine | Bending machine

  • Product Description
  • Components
  • Technical Parameters
    • Commodity name: HVAC Duct Corner Punch Press
    • Commodity ID: 1056962447681609728

    Name :HVAC duct corner punch press</br> Brand :Rbqlty</br> Item NO :1525662442</br> Category :HVAC DUCT MACHINE</br> Model Type :RB</br> Price :CONSULT

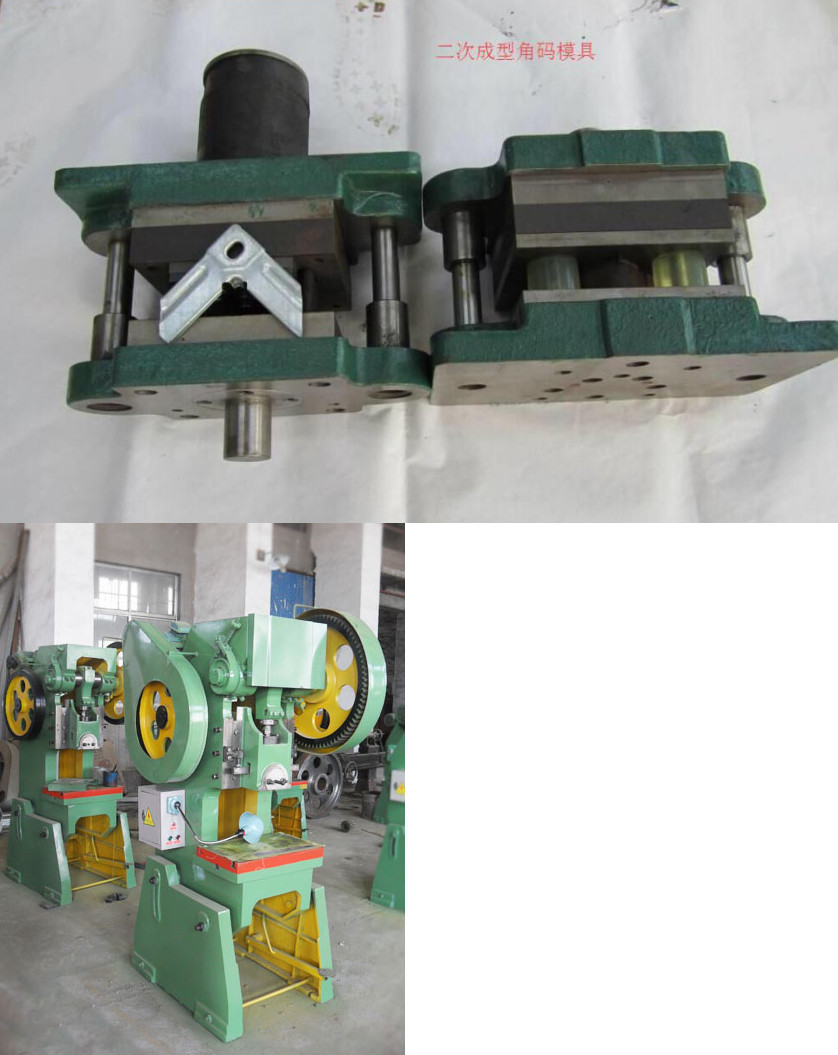

    25 ton Duct corner punching machine+2 sets of corner die(2 punch)

    rbqlty.com

    40 ton Duct corner punching machine+1 set of corner die(1 punch)

    rbqlty.com

  • 25 ton press with 2 molds

    you can buy 1 set and change the mold for 2 punch

    or 2 sets use 1 set for first punch and another set for second punch

    40 ton press with 1 mold

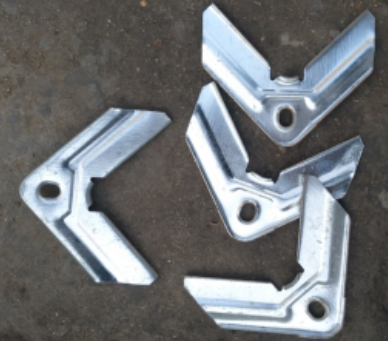

    1 punch forms the corner steel

    rbqlty.com



    rbqlty.com

  • Model tonnage 25 40
    Nominal pressure kN 250 400
    Nominal pressure stroke mm 3 4
    Ram stroke mm 70 100
    Stroke number Times/mm 70 55
    Die set height mm 200 240
    Die set height adjustment mm 40 56
    Worktable size Front-Back mm 350 400
    Left-Right mm 560 680
    Max. Inclined angle ° 15 25
    Shank Hole Size mm 40 50
    Worktable Thickness mm 50 70
    Worktable hole size mm 130 135
    Motor Power kw 2.2 3
    Throat depth mm 190 250
    Distance Betwwen Punch to worktable mm 275 340..
    Distance Betwwen Columns mm 240 250
    Package size Length mm 900 1400
    Width mm 700 1000
    Height mm 2000 2300
    Machine size Front-Back mm 640 1100
    Left-Right mm 530 640
    Volumn m? 1.260 3.220
    Weight ton 1.05 2.06

Product Description

25 ton Duct corner punching machine+2 sets of corner die(2 punch)

rbqlty.com

40 ton Duct corner punching machine+1 set of corner die(1 punch)

rbqlty.com
