    • Commodity name: E21 Hydraulic Shearing Machine With Front Feeding Device
    • Commodity ID: 1056958389902204928

    Name :E21 Hydraulic Shearing Machine With Front Feeding Device</br> Brand :Rbqlty</br> Category: GUILLOTINE SHEARS MACHINE</br> Price: CONSULT

    Guillotine Shearing machine main features:

    1.German Siemens Motor can be optional.
    2. France Schneider electric can be optional.
    3. USA Sunny oil pump is optional.
    4.Material pressure cylinder, to ensure you without oil leak trouble.
    5. The oil cylinder is with mirror finished, also to reduce oil leak trouble.





    ▶ CNC controller

    ▶ Easily adjustable with scale

    ▶ blade gap setting system for precise cutting

    ▶ Movable controller arm

    ▶ Roller bearings on the table to help feeding sheets to the machine easily

    ▶ Welded monoblock heavy steel frame using rigid structural steel produced with modern manufactured methods

    ▶ Automatic, CNC controlled motorized back gauge 1000 mm range (stroke) with ball shaft and guide system .

    ▶ Programmable backgauge, with retract and swing up features for longer sheets

    ▶ Prevents scratching of the sheet with ball on the table

    ▶ sheet hold down cylinders to protect sheet parts when cutting process

    ▶ Cylinders, processed as precise from solid full material and made honed .

    ▶ Pistons, processed from forged steel, hardened, grinded and chrome-coated.

    Key words:
    • Shearing Machine
    • Hydraulic Shearing Machine
    • hearing Machine With Front Feeding Device
    • Front Feeding Device
    • E21 shearing machine
  •

                                 DAC360 CNC System



                                   Main Motor

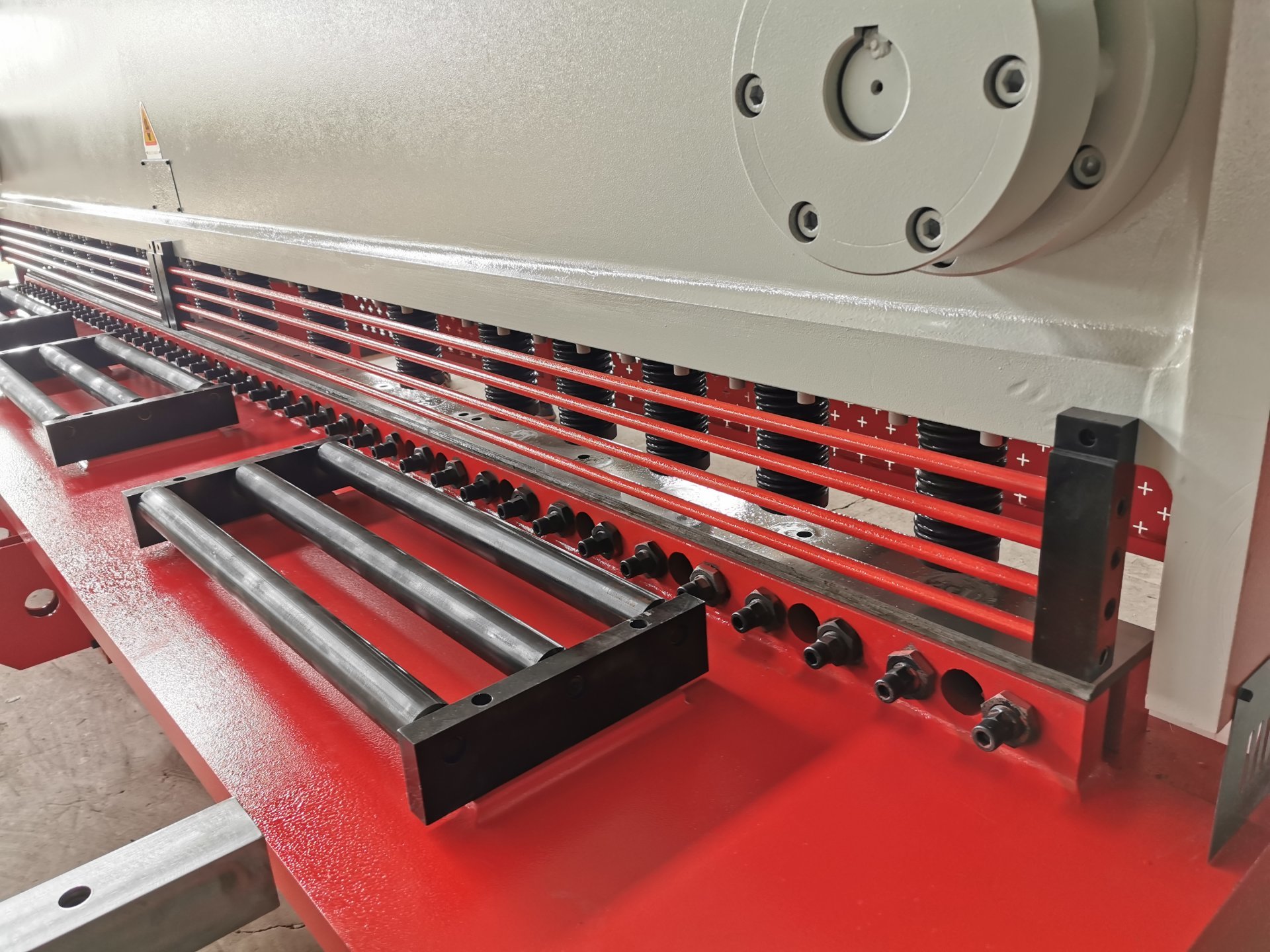

                           Hold down cylinders

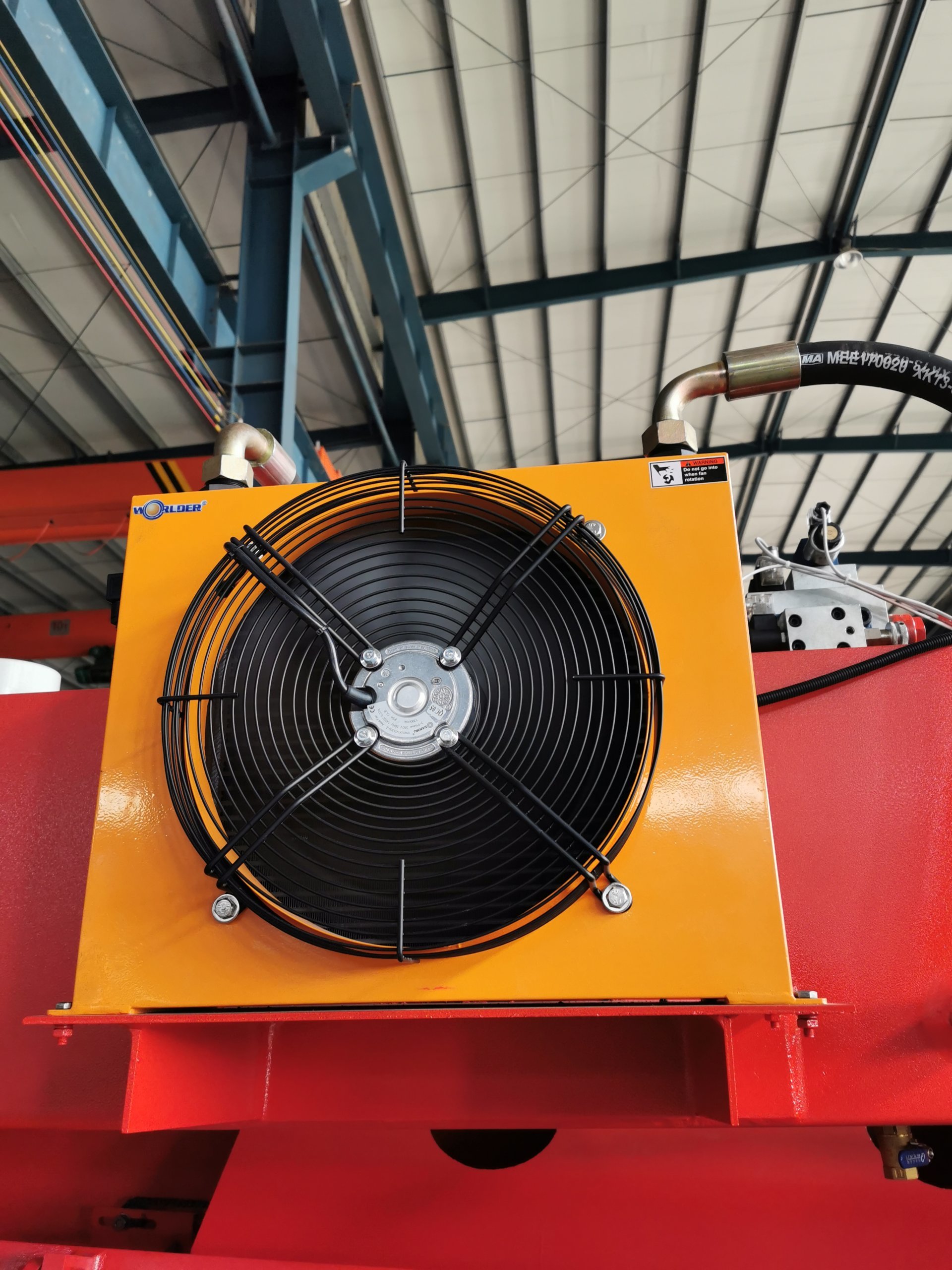

                              Oil Cooling Fan

  • Model

    Cutting

    Thickness

    Cutting

    Length

    Cutting

    Angle

    Material

    Strength

    Stroke

    Times

    Backgauge

    Adjusting

    Range

    Main

    Motor

    Power

    Weight Dimension
    TYPE (mm) (mm) ° (KN/CM) time/min (mm) (kw) (kg) L-W'H(mm)
    6 x 2500 6 2500 0.5-1.5 80 10~35 600 7.5 5000 3000*2075*1920
    6 x 3200 6 3200 0.5-1.5 80 8~30 600 7.5 6100 3130*2075*1970
    6 x 4000 6 4000 0.5-1.5 80 5~20 600 7.5 7200 4530*2075*2000
    6 x 5000 6 5000 0.5-1.5 80 4~15 600 11 10500 6430-2075*2520
    6 x 6000 6 6000 0.5-1.5 80 3~10 800 15 10700 7530*2075*2210
    6 x 8000 6 8000 0.5-1.5 80 2~6 800 22 32000 9530*2075*2600
    8 x 2500 8 2500 0.5-1.5 80 8~30 600 7.5 5500 3040*2075” 920
    8 x 3200 8 3200 0.5-1.5 80 6~25 600 7.5 6500 3740*2075*1920
    12 x 2500 12 2500 0.5-2 80 5~20 600 15 8500 3110*2575*2210
    12 x 3200 12 3200 0.5-2 80 4~16 600 15 9800 3810*2575*2500
    12 x 4000 12 4000 0.5-2 80 3~12 600 18.5 11500 4610*2575*2500
    16 x 2500 16 2500 0.5-2.6 80 6~20 600 18.5 10500 3130*2655*2200
    16 x 4000 16 4000 0.5*5.5 80 4~12 600 18.5 15000 4430*2655*2570
    20 x 2500 20 2500 0.5-2.6 80 6~15 800 30 13500 3100-2600*2300
    20 x 4000 20 4000 0.5-5.5 80 4~12 800 60 19000 4600*2055*2720
    25 x 3200 25 3200 0.5-3.5 80 4~10 800 37 20000 3610*2000*3300

Product Description

Guillotine Shearing machine main features:

1.German Siemens Motor can be optional.
2. France Schneider electric can be optional.
3. USA Sunny oil pump is optional.
4.Material pressure cylinder, to ensure you without oil leak trouble.
5. The oil cylinder is with mirror finished, also to reduce oil leak trouble.





▶ CNC controller

▶ Easily adjustable with scale

▶ blade gap setting system for precise cutting

▶ Movable controller arm

▶ Roller bearings on the table to help feeding sheets to the machine easily

▶ Welded monoblock heavy steel frame using rigid structural steel produced with modern manufactured methods

▶ Automatic, CNC controlled motorized back gauge 1000 mm range (stroke) with ball shaft and guide system .

▶ Programmable backgauge, with retract and swing up features for longer sheets

▶ Prevents scratching of the sheet with ball on the table

▶ sheet hold down cylinders to protect sheet parts when cutting process

▶ Cylinders, processed as precise from solid full material and made honed .

▶ Pistons, processed from forged steel, hardened, grinded and chrome-coated.
