DAC360 CNC Guillotine Shearing Machine
Name :DAC360 cnc guillotine shearing machine</br> Brand :Rbqlty</br> Item NO :1541659165</br> Category :SHEET METAL SHEAR</br> Model Type :QC11K</br> Price: CONSULT
关键词：
key word:
Laser cutting machine | Bending machine
Category:
- Product Description
- Components

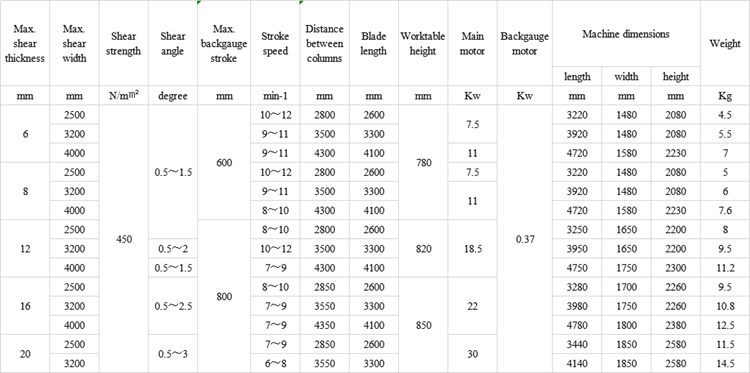

- Technical Parameters
-
- Commodity name: DAC360 CNC Guillotine Shearing Machine
- Commodity ID: 1056961074403565568
Name :DAC360 cnc guillotine shearing machine</br> Brand :Rbqlty</br> Item NO :1541659165</br> Category :SHEET METAL SHEAR</br> Model Type :QC11K</br> Price: CONSULT
DAC 360 Function
Axis
- Stroke control
- Gap control
- Angle control
- Back/front gauge control, dual gauge control (DAC-362s)
- Stroke 0 - 9,999.99 mm
- Retract 0 - 9,999.99 mm
- Correction -9.99 - 9.99 mm
- Retract programmable
- Simultaneous axes movement
- Manual movement of axes
Force control
- Clamping force
- Cutting force
Computed functions
- Angle, gap and stroke length computation
- Force (clamping / cutting)
- Backgauge safety zone
Programming functions
- Numerical program setup
- Back gauge position
- Retract function
- Angle programming
- Gap programming
- Stroke length
- Step repetition
- Material types / properties
- Thickness
- Stock counter
- Sheet position
- Axis speed
- Sheet support
- “Return to sender” function
- Sheet thickness measurement
- Back gauge park position
-
STANDARD EQUIPMENTS
√ Hardened blades.
- Top blades : 2 sides
- Bottom blades : 4 sides
√ E21S controller.
√ 250mm throat depth.
√ 600mm motorized backgauge system with 0,1 mm accuracy.
√ 800mm side gauge and front support arms.
√ Metric and inch rulers.
√ Front, side and back safety panels which are suitable for CE norms.
√ Sheet sliding table.
√ Schneider Electric System.
√ Rexroth hydraulic system.
√ Hold down cylinders.
√ Moveable foot pedal.
√ Manual blade gap adjustment.
√ Emergency stop button.
√ Light finger protection.
OPTIONAL EQUIPMENTS
√ Optional throat depth.
√ Front angle gauge.
√ Side gauge and front support arms in optional lengths.
√ Sheet conveyor and stacking system.
√ Front Gauge X1, X2 axis and backgauge X3, X4 axis.
√ Optional backgauge stroke.
√ Sheet support system for thin sheets.
1- Pneumatic support system. (Lever type)
2- Pneumatic support system. (Monobloc panel type)
√ Hydraulic oil cooling and heating system.
√ Optional solid table.
√ Stainless steel blades.
√ Ability to increase stroke amount per minute.
√ Light safety system for finger protection.
√ Optional alternative colors.
√ Coolant system or heater can be placed in electric panel during ambient conditions.
√ Double foot pedal.
√ Electrical panel or controller can be placed on right side of the machine.
√ Laser cutting line.
√ Central lubrication system.
-
Product Description
DAC 360 Function
|
Axis - Stroke control - Gap control - Angle control - Back/front gauge control, dual gauge control (DAC-362s) - Stroke 0 - 9,999.99 mm - Retract 0 - 9,999.99 mm - Correction -9.99 - 9.99 mm - Retract programmable - Simultaneous axes movement - Manual movement of axes Force control - Clamping force - Cutting force
Computed functions - Angle, gap and stroke length computation - Force (clamping / cutting) - Backgauge safety zone
|
Programming functions - Numerical program setup - Back gauge position - Retract function - Angle programming - Gap programming - Stroke length - Step repetition - Material types / properties - Thickness - Stock counter - Sheet position - Axis speed - Sheet support - “Return to sender” function - Sheet thickness measurement - Back gauge park position |
