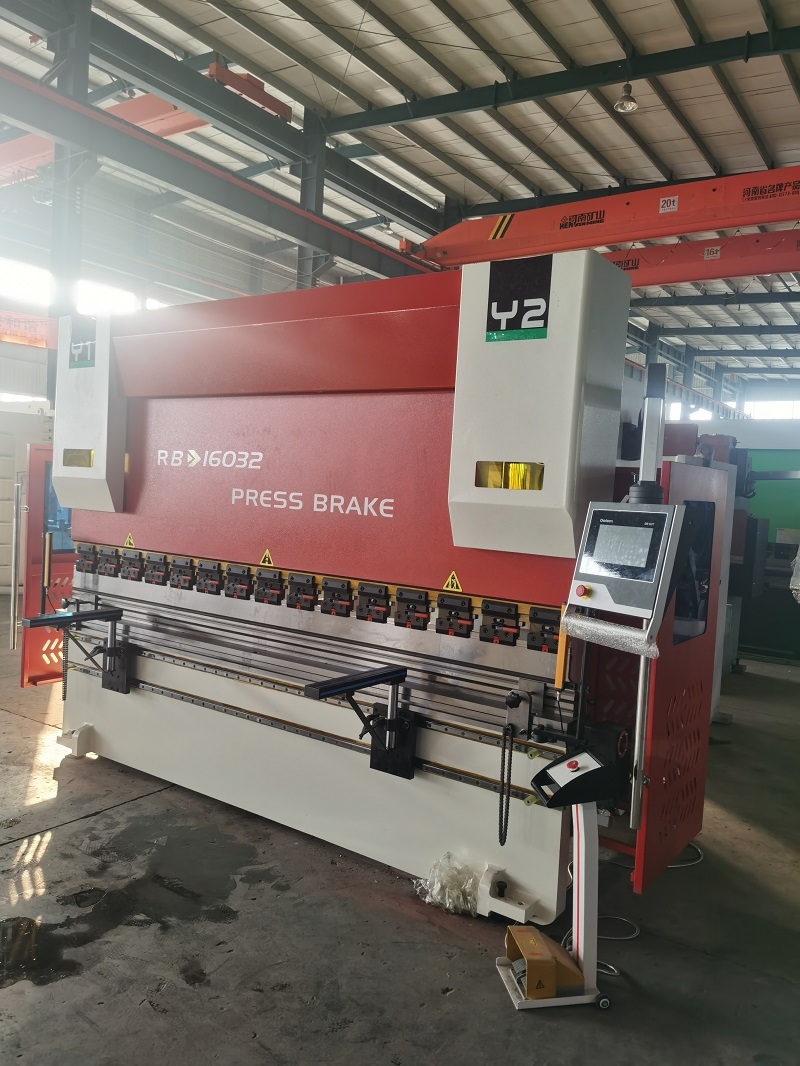

DA53T CNC Press brake 3+1
Name : DA53T CNC Press brake 3+1 </br> Brand :Rbqlty</br> Category :Hydraulic PRESS BRAKE MACHINE</br> Model Type :WC67K</br> Price: CONSULT
关键词：
key word:
Laser cutting machine | Bending machine
Category:
- Product Description

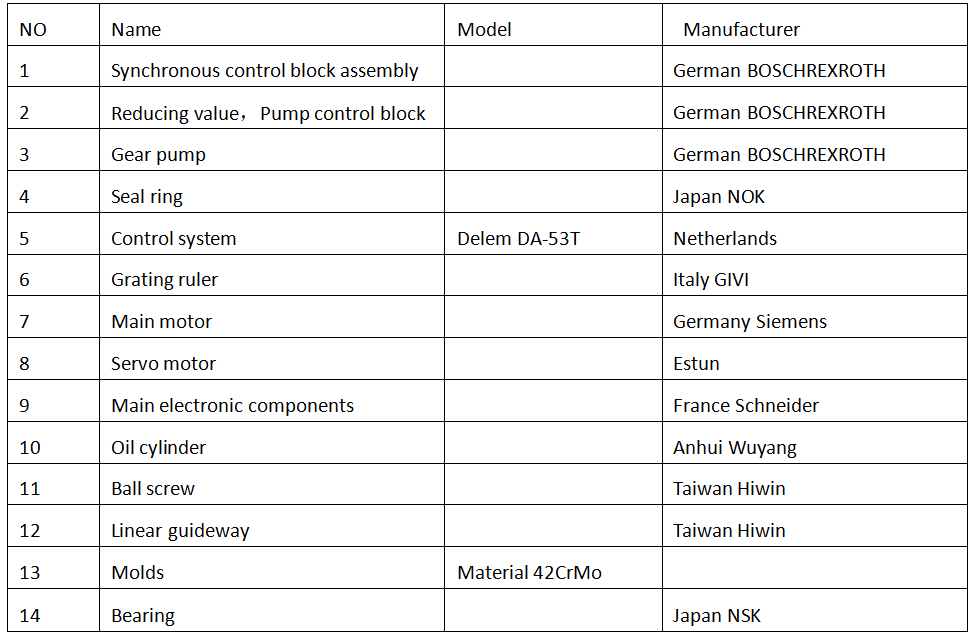

- Components

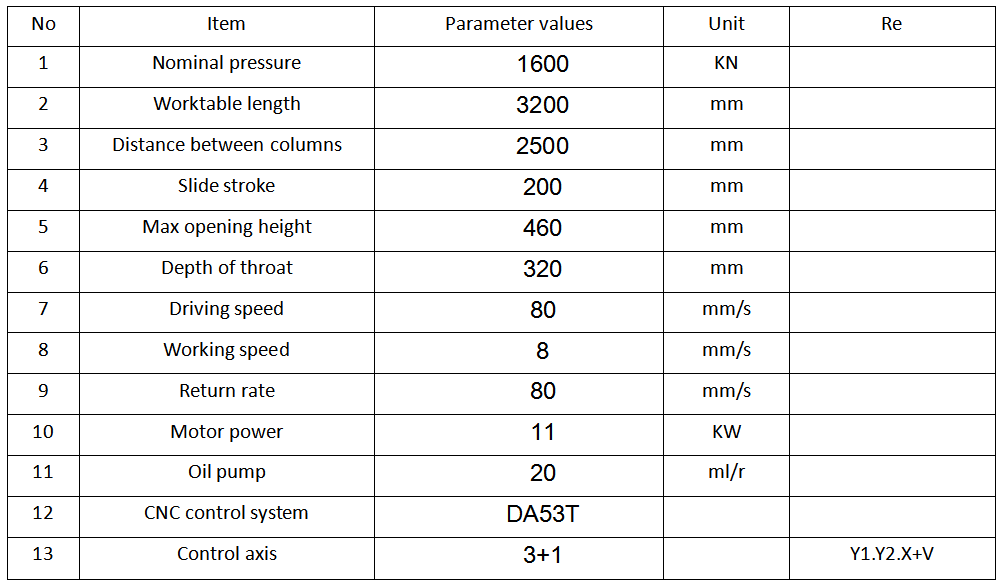

- Technical Parameters
-
- Commodity name: DA53T CNC Press brake 3+1
- Commodity ID: 1056958645100437504
Name : DA53T CNC Press brake 3+1 </br> Brand :Rbqlty</br> Category :Hydraulic PRESS BRAKE MACHINE</br> Model Type :WC67K</br> Price: CONSULT
DA58T 3+1 axis CNC press brake machine /Metal bending machine
CNC Press brake Main features:
1,Structure:
1)Complete steel-welded structure;
2)ANSYS finite element analysis software to ensure the reliability of the machine and the precision;2, Main oil cylinders:
1)Closed loop control mode:Germany electro-hydraulic servo valve and imported grating ruler;
2)Totally different from traditional mechanical stop bending machines;
3)High precision of the glide position and bending;
4)Accurate and stable operation3,Back gauge:
1)Imported functional components to ensure the stopping precision.
2)More functional multi-axis blocking is available according to customer's requirement.4,Hydraulic system:
1)Integrated control system imported from Germany;
2)Decrease the installation of pipelines;
3)Ensure the working stability and better appearance.5,Body sides:
1)C shaped plates are fitted on both sides;
2)The high precision grating ruler is on the C shaped plates;
3)Avoid the influences on bending precision arising from distortion of machine body during bending process.CNC DA-53T System Introduction
Standard
- Colour high brightness LCD display
- 10.1" wide screen TFT
- LED backlight
- 1024 x 600 pixels
- Industrial grade touch screen
- Storage capacity 1 GB
- Data backup / restore via USB
- Integrated valve amplifier
- Power-down memorisation
- Profile-53TL offline software
Main Functions
· “Hot-key” touch navigation
· 10.1" high resolution colour TFT
· Up to 4 axes (Y1,Y2 + 2 aux. axes)
· Crowning control
· Tool / material / product library
· Servo and frequency inverter control
· Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
· USB memory stick interfacing
· Profile-T offline software solution
Key words:- Press brake
- CNC Press brake
- DA53T CNC Press brake
-

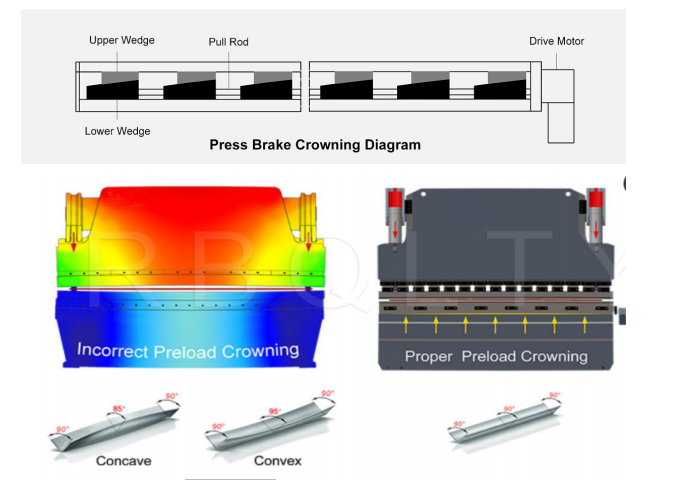

CNC CROWNING SYSTEM (V axis):
The pulling plate of mechanical compensation device driven by motor to control each point of compensation forming like a arc.
The compensation points can perfectly compensate the elastic deformation of the worktable and slider to ensure the Angle consistency and straightness of the work piece.
Position sensor detection position, CNC system control.
-
Product Description
DA58T 3+1 axis CNC press brake machine /Metal bending machine
CNC Press brake Main features:
1,Structure:
1)Complete steel-welded structure;
2)ANSYS finite element analysis software to ensure the reliability of the machine and the precision;
2, Main oil cylinders:
1)Closed loop control mode:Germany electro-hydraulic servo valve and imported grating ruler;
2)Totally different from traditional mechanical stop bending machines;
3)High precision of the glide position and bending;
4)Accurate and stable operation
3,Back gauge:
1)Imported functional components to ensure the stopping precision.
2)More functional multi-axis blocking is available according to customer's requirement.
4,Hydraulic system:
1)Integrated control system imported from Germany;
2)Decrease the installation of pipelines;
3)Ensure the working stability and better appearance.
5,Body sides:
1)C shaped plates are fitted on both sides;
2)The high precision grating ruler is on the C shaped plates;
3)Avoid the influences on bending precision arising from distortion of machine body during bending process.
CNC DA-53T System Introduction
Standard
- Colour high brightness LCD display
- 10.1" wide screen TFT
- LED backlight
- 1024 x 600 pixels
- Industrial grade touch screen
- Storage capacity 1 GB
- Data backup / restore via USB
- Integrated valve amplifier
- Power-down memorisation
- Profile-53TL offline software
Main Functions
· “Hot-key” touch navigation
· 10.1" high resolution colour TFT
· Up to 4 axes (Y1,Y2 + 2 aux. axes)
· Crowning control
· Tool / material / product library
· Servo and frequency inverter control
· Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
· USB memory stick interfacing
· Profile-T offline software solution
