Coil Steel Cutting Line/Slitting Line Machine

CNC steel coil cutting line Slitting line

Product Description Components Technical Parameters

Product Description


CNC cut to length machine coil cutting line

CNC cut line Function it used for flatting the coil plate, Maximum eliminate plate stress, made the stress evenly distributed.

Cut to lenth line Structure it is composed of frame, pinch device, working roller, support roller, adjusting device of roller gap lifting incline, driven parts, etc.

  • Frame, up and down crossbar and housing:plate casting steel structure, with high strength, good rigidity.
  • Pinch device  a pair of pinch roller mounted on leveler entrance, to pinch the plate.
    • Pinch power is through leveler distributing box by ball cage universal joints, up and down roller all have power
    • Upper roller lifting by air cylinder, gear and rack synchronous.
  • Leveling deviceit composed of working roller, support roller and roller stand device
    • Working roller and support rollerl are adopt rolling bearing, bearing stand is forging steel.
  • Support roller equipped with supporting roller, can manually adjust
  • Roller gap adjust deviceleveler adopts adjusting device to change roller gap.
  • Drive devicemain motor( DC motor) through disc brake, gear speed reducer, distributing case, etc
    • Adopt ball universal joint, each working roller are have power, high efficiency and accuracy
    • Distributing case is cylindrical gear, rolling bearing, for longer life.
    • Running speed is stepless adjust.

Lubrication gear box is thin oil splash lubricate, other with think oil pump manual centralize dry oil lubricate.



Return to List

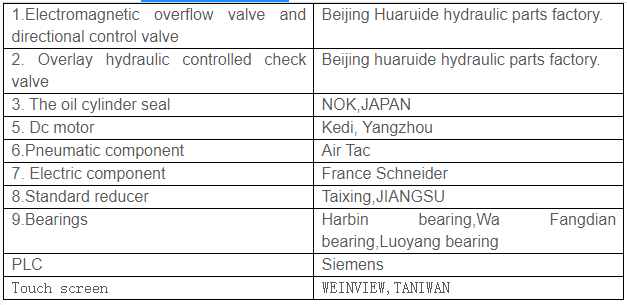

Components


Technical Parameters


 Specification for slitting& recoiling line




一、Project:

¨ New Project) ¨Expanding Project)

二、Coil Data

Material)

Thickness:Min):       mm  Max:             mm

Coil Weight):

Coil I.D: ø                   mm→ø                         mm

Coil O.D: ø                  mm→ø                              mm

Width:  Min)      mm→Max)                     mm

Requirement for products

Slitting picsThickest sheets)                      (PCS

                             Thickest sheets)                       (PCS

Min Strip Width:                                             mm

Slitting Precision:±                                           mm

       Coil I.D: ø                                                mm

Recoiling Speed:                                             m/min

  Recoiling Weight:                                               T

四、Requirement for machine’s performance:

  (Equipment configuration:  ¨Economical and Practical)

                                                      ¨Precise with hing speed)

         ¨Feeding from left, receiving from right)

         ¨Feeding from right, receiving from left

Motor Control¨ DC control)

                                         ¨ VF control
