3 Cylinder Door Frame E21 Press Brake 160 Ton 4000

Name : 3 Cylinder Door Frame E21 Press Brake 160T 4000 </br> Brand :Rbqlty</br> Category :PRESS BRAKE MACHINE</br> Model Type :WC67K</br> Price: CONSULT

关键词:

key word:

Laser cutting machine | Bending machine

  • Product Description

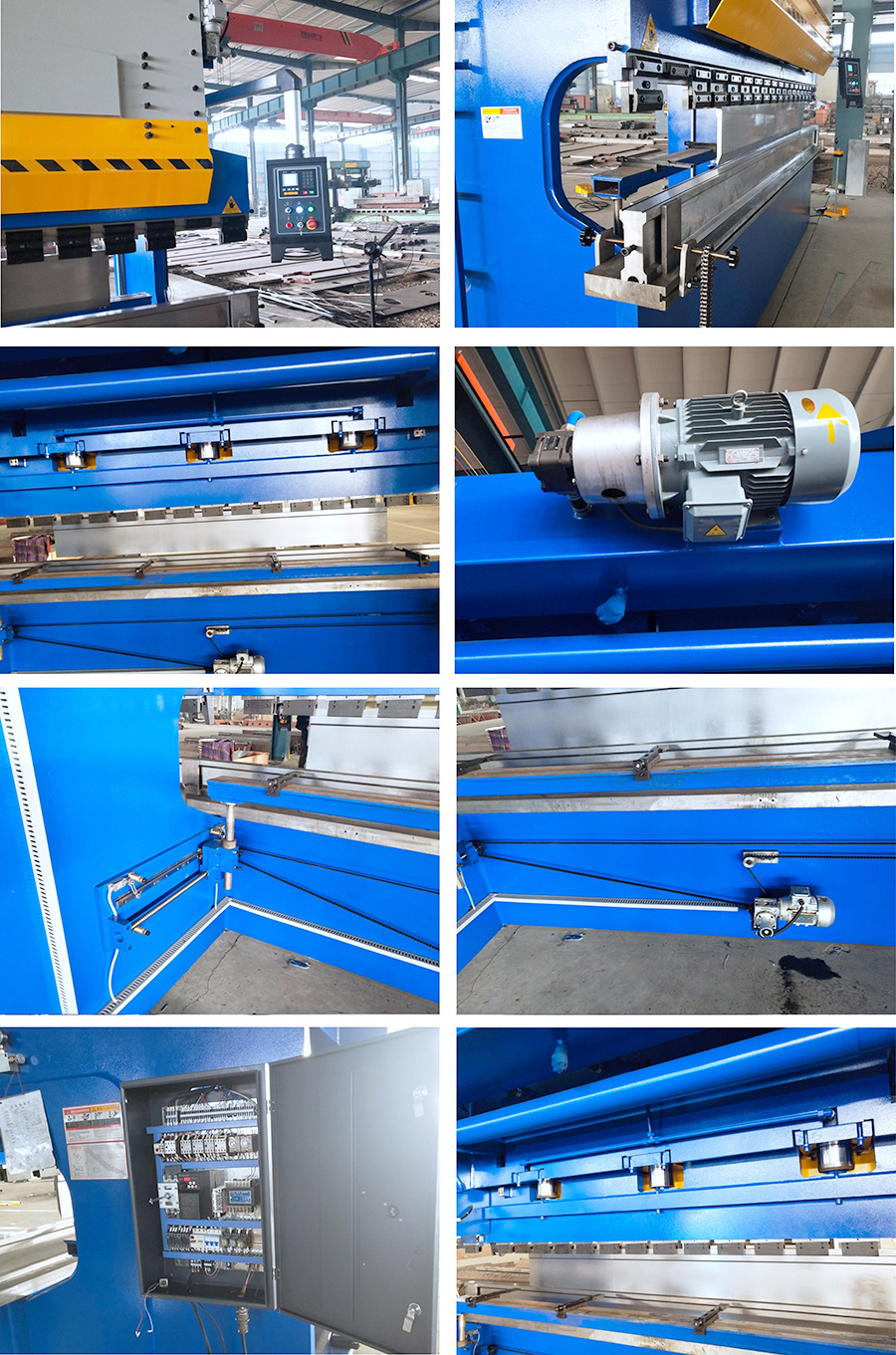

  • Components
  • Technical Parameters
    • Commodity name: 3 Cylinder Door Frame E21 Press Brake 160 Ton 4000
    • Commodity ID: 1056960494511677440

    Name : 3 Cylinder Door Frame E21 Press Brake 160T 4000 </br> Brand :Rbqlty</br> Category :PRESS BRAKE MACHINE</br> Model Type :WC67K</br> Price: CONSULT

    160 ton 4000 three cylinder door frame press brake

    Main Features:

    1. Totally European design, streamlined looking, Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.

    2. MTR PRESS BRAKE is Equipped with the Estun user-friendly user interface,the E21 provides all main press brake functionality.

    3. Automatic tonnage and stroke adjustment for bending angles.Perfect bending results with easy angle input and operation of machine.

    4. All tubes are connected by tube insertings to avoid oil lost and burst by welding tubes.

    5. Ball screw and line guide was designed to improve precision.

    6. E-Z fast wedge clamping was designed to change tools quickly.

    7. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

    Estun E21s NC Press Brake Control system:

    1. Monochrome LCD Box Panel.

    2. Integral factor programmable freely

    3. Automatic positioning control

    4. Spindle allowance offset

    5. Internal time relay

    6. Stock counter

    7. Backgauge position display, resolution in 0.01mm

    The bending results You can bend longer and deeper parts with standard AC/MB7-Bend Series.



  • Standard Equipment:

    1.System Intermediate Upper clamps with Anti Wedges

    2.Plate Support Arms

    3. Powered Depth Axis

    4. Back gauge

    5. Light guards

    6. Top and Bottom Tooling

    7. Estun E21 NC control

    8. Germany Bosch-Rexroth Hydraulic

    9. Schneider Electrics

    10. Hydraulic and Electrical overload protection

    11. Squaring Arm and Front Support Arms

    12. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.

    13. Side guard is standard meeting CE regulations.



  • Model

    Nominal

    Pressure

    Worktable

    length

    Distance between

    Housings

    Throat

    Depth

    Ram

    stroke

    Strokes

    Number

    Open

    height

    Main

    motor

    Overall

    Dimensions

      kN mm mm mm mm times/min mm kW L*W*H mm
    WC67Y/K-30/1600 300 1600 1280 200 80 16 190 3 1700*900*1650
    WC67Y/K-30/2000 300 2000 1280 200 80 18 190 3 1700*900*1650
    WC67Y/K-40/2500 400 2500 1900 280 100 20 320 5.5 2600*1100*1900
    WC67Y/K-63/2500 630 2500 2050 300 100 12 380 5.5 2605*1725*2355
    WC67Y/K-63/3200 630 3200 2670 250 100 10 380 5.5 3300*1725*2355
    WC67Y/K-80/2500 800 2500 2050 250 140 10 395 7.5 2605*1725*2355
    WC67Y/K-80/3200 800 3200 2660 250 140 10 395 7.5 3300*1725*2405
    WC67Y/K-100/2500 1000 2500 2050 320 140 8 395 7.5 2600*1800*2540
    WC67Y/K-100/3200 1000 3200 2660 320 140 8 395 7.5 3290*1740*2400
    WC67Y/K-100/4000 1000 4000 3060 320 140 8 395 7.5 4090*1740*2500
    WC67Y/K-100/5000 1000 5000 3960 320 140 8 395 7.5 5100*1740*2800
    WC67Y/K-125/3200 1250 3200 2510 320 140 8 395 7.5 3450*1740*2450
    WC67Y/K-125/4000 1250 4000 3160 320 140 8 395 7.5 4090*1740*2450
    WC67Y/K-160/3200 1600 3200 2540 330 200 6 457 11 3280*1930*2800
    WC67Y/K-160/4000 1600 4000 3140 330 200 6 457 11 4080*1930*2800
    WC67Y/K-160/4500 1600 4500 3300 330 200 6 457 11 4580*1930*2800
    WC67Y/K-200/4000 2000 4000 3140 330 200 3 457 11 4080*1930*2800
    WC67Y/K-250/5000 2500 5000 3900 400 200 5 560 20 5550*1900*3100
    WC67Y/K-300/3200 3000 3200 2500 400 250 3 630 19 3750*2200*3100
    WC67Y/K-300/4000 3000 4000 3070 400 250 3 630 23 4550*2200*3300
    WC67Y/K-300/5000 3000 5000 3900 400 250 3 630 26 5550*2200*3400
    WC67Y/K-300/6000 3000 6000 4900 400 250 3 630 30 6550*2200*3500
    WC67Y/K-400/4000 4000 4000 3000 400 300 2.5 770 26 4550*2600*3500
    WC67Y/K-400/5000 4000 5000 3900 400 300 2.5 770 30 5550*2600*3700
    WC67Y/K-400/6000 4000 6000 4900 400 300 2.5 770 36 6550*2600*3800
    WC67Y/K-500/4000 5000 4000 3000 450 350 2.5 860 37 4550*2800*3700
    WC67Y/K-500/5000 5000 5000 3900 450 350 2.5 860 46 5550*2800*3800
    WC67Y/K-500/6000 5000 6000 4900 450 350 2.5 860 55 6500*2800*3800
    WC67Y/K-600/6000 6000 6000 4900 450 350 2.5 860 60 6550*3000*4200

Product Description

160 ton 4000 three cylinder door frame press brake

Main Features:

1. Totally European design, streamlined looking, Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.

2. MTR PRESS BRAKE is Equipped with the Estun user-friendly user interface,the E21 provides all main press brake functionality.

3. Automatic tonnage and stroke adjustment for bending angles.Perfect bending results with easy angle input and operation of machine.

4. All tubes are connected by tube insertings to avoid oil lost and burst by welding tubes.

5. Ball screw and line guide was designed to improve precision.

6. E-Z fast wedge clamping was designed to change tools quickly.

7. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

Estun E21s NC Press Brake Control system:

1. Monochrome LCD Box Panel.

2. Integral factor programmable freely

3. Automatic positioning control

4. Spindle allowance offset

5. Internal time relay

6. Stock counter

7. Backgauge position display, resolution in 0.01mm

The bending results You can bend longer and deeper parts with standard AC/MB7-Bend Series.
