Stationary Mechanical Stamping Punch Press

Name :Stationary mechanical stamping punch press</br> Brand :Rbqlty</br> Item NO :1523159559</br> Category :PUNCH PRESS MACHINE</br> Model Type :J21</br> Price :online enquiry

关键词:

key word:

Laser cutting machine | Bending machine

  • Product Description
  • Components
  • Technical Parameters
    • Commodity name: Stationary Mechanical Stamping Punch Press
    • Commodity ID: 1056961517414342656

    Name :Stationary mechanical stamping punch press</br> Brand :Rbqlty</br> Item NO :1523159559</br> Category :PUNCH PRESS MACHINE</br> Model Type :J21</br> Price :online enquiry

    J21 series open back stationary machanical press

    *The casting body, rigid clutch, and the spring balance structure, the work is stable and reliable.

    *The casting body, not inclined, helical gear transmission, rigid clutch.

    *The dry friction clutch can be used to stop the sliding block in any position, and can realize single, single and continuous operation, which can adjust the mold position at any time and improve accuracy.The machine adopts imported PLC centralized control, and equipped with safe dual valve and balanced cylinder, the work is stable and reliable.And it can be equipped with photoelectric protection device, belonging to the safe type press.



    rbqlty.com

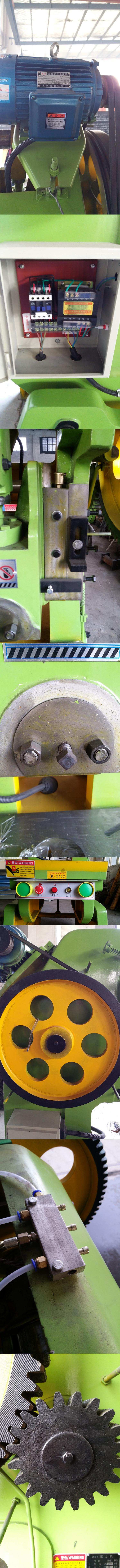

    Detailed images



    rbqlty.com



    Work piece diagram



    rbqlty.com

  • rbqlty.com

  • Technical Parameters Unit J21-100 J21-125 J21-160 J21-200 J21-250
    Nominal force kN 1000 1250 1600 2000 2500
    Stroke of nominal force mm 6 8 8 12 14
    Stroke of sliding block mm 130 130 160 180 200
    Number of strokes times/min 43 35 28 28 28
    Closed height mm 380 400 400 420 430
    Closed height adjustment mm 100 110 120 120 130
    Distance from slider block center to the frame mm 310 340 390 390 390
    Length between columns mm 520 560 580 680 700
    Hole size for die handle Diameter mm 60 70 80 90 100
    Depth mm 90 120 150 150 170
    Size of worktable Left-right mm 900 930 1140 1390 1500
    Front-back mm 630 630 740 820 900
    Blanking hole diameter mm 180 200 200 220 250
    Table plate thickness mm 120 130 150 150 150
    Dimensions Left-right mm 1480 1590 1855 2015 2340
    Front-back mm 1815 1890 2045 2475 2675
    Height mm 2750 2850 2920 3780 3850
    Power kW 11 11 15 18.5 22

Product Description

J21 series open back stationary machanical press

*The casting body, rigid clutch, and the spring balance structure, the work is stable and reliable.

*The casting body, not inclined, helical gear transmission, rigid clutch.

*The dry friction clutch can be used to stop the sliding block in any position, and can realize single, single and continuous operation, which can adjust the mold position at any time and improve accuracy.The machine adopts imported PLC centralized control, and equipped with safe dual valve and balanced cylinder, the work is stable and reliable.And it can be equipped with photoelectric protection device, belonging to the safe type press.



rbqlty.com



Detailed images



rbqlty.com



Work piece diagram



rbqlty.com
